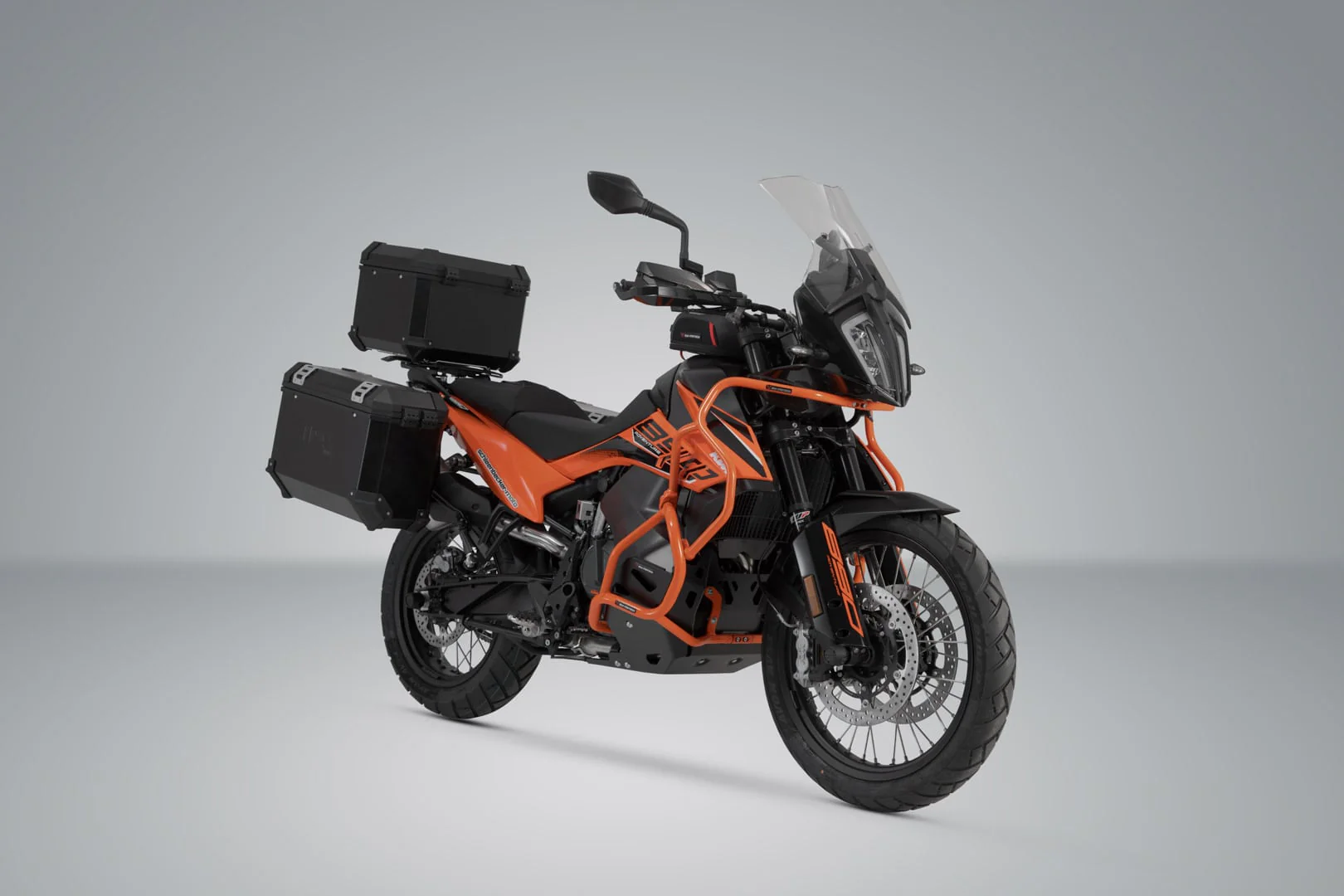

SW-Motech Adventure Protection System - KTM - 790/890 Adventure/R

Features

• The Adventure set Protection includes all of the important protection components
• Provides you and your bike with an extra protection in the case of a fall or off-road ride
• The bike-specific protectors convince with their ideal fit
• Can be mounted to original attachment points and blend seamlessly with the aesthetics of the motorcycle
• Kit Includes:
  • Crash Bar
    • Constructed of robust steel with a 27 mm pipe diameter
    • Thickness of 2.35 mm
    • 6 mm thick mounting brackets
    • Reliable protection for important components
    • Highly stable construction appropriate for the peg length of the motorcycle
    • Model-specific development guarantees precise fit and reliable frame linkage
    • Optimized lean angle guaranteed
    • Simple mounting by screwing on factory-made mounting points on the frame

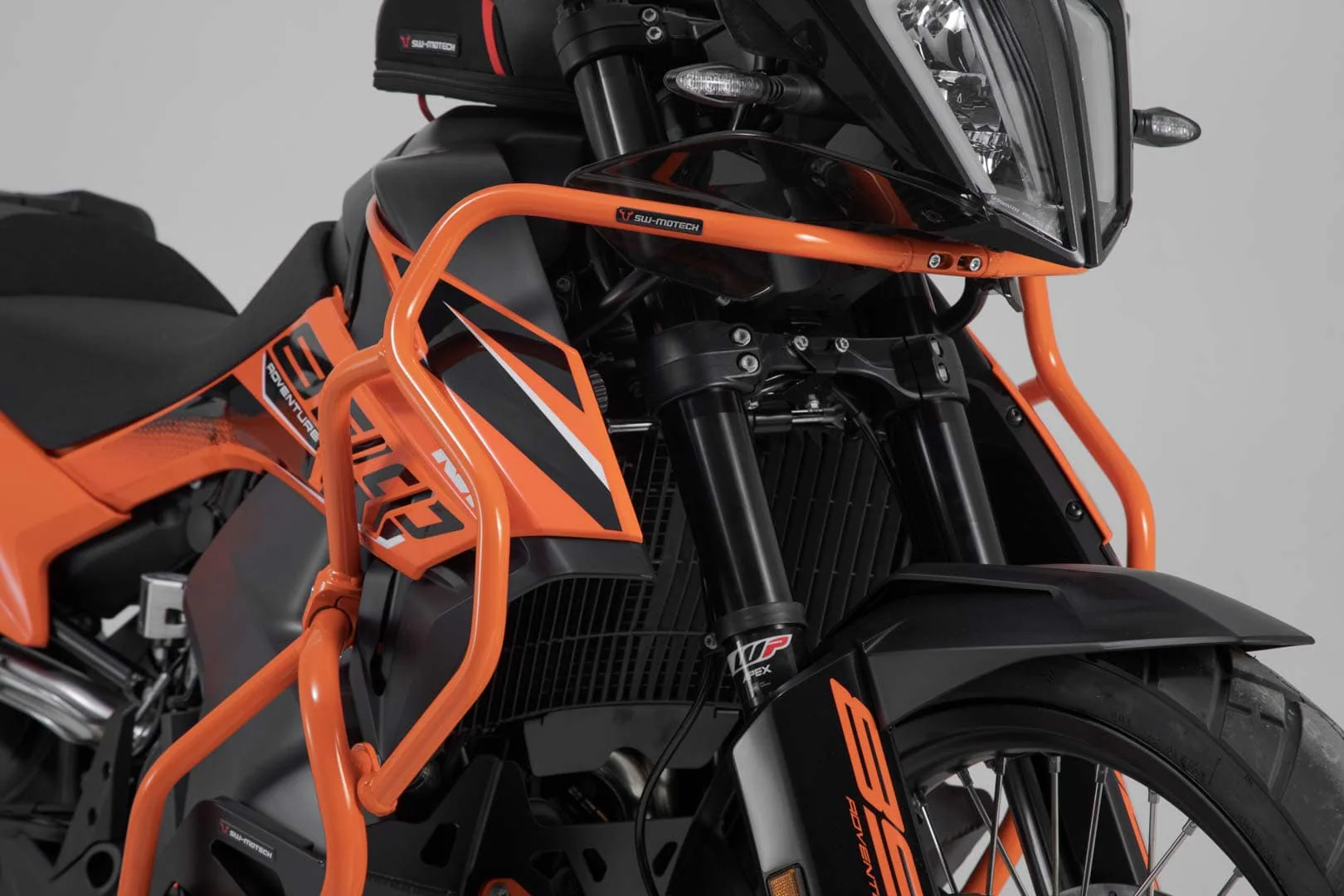

  • Upper Crash Bar
    • Constructed of robust steel with 21.3 mm pipe diameter
    • Additional protection of the fairing and radiator
    • Thickness of 2.5 mm
    • Fairing protection
    • Bike-specific development guarantees a snug fit
    • Simple, screw-on mounting on original attachment points
    • Notes
      • The lower crash bar is not included.
      • Can only be mounted together with the lower crash bars for the 790 Adventure / R from SW-MOTECH.

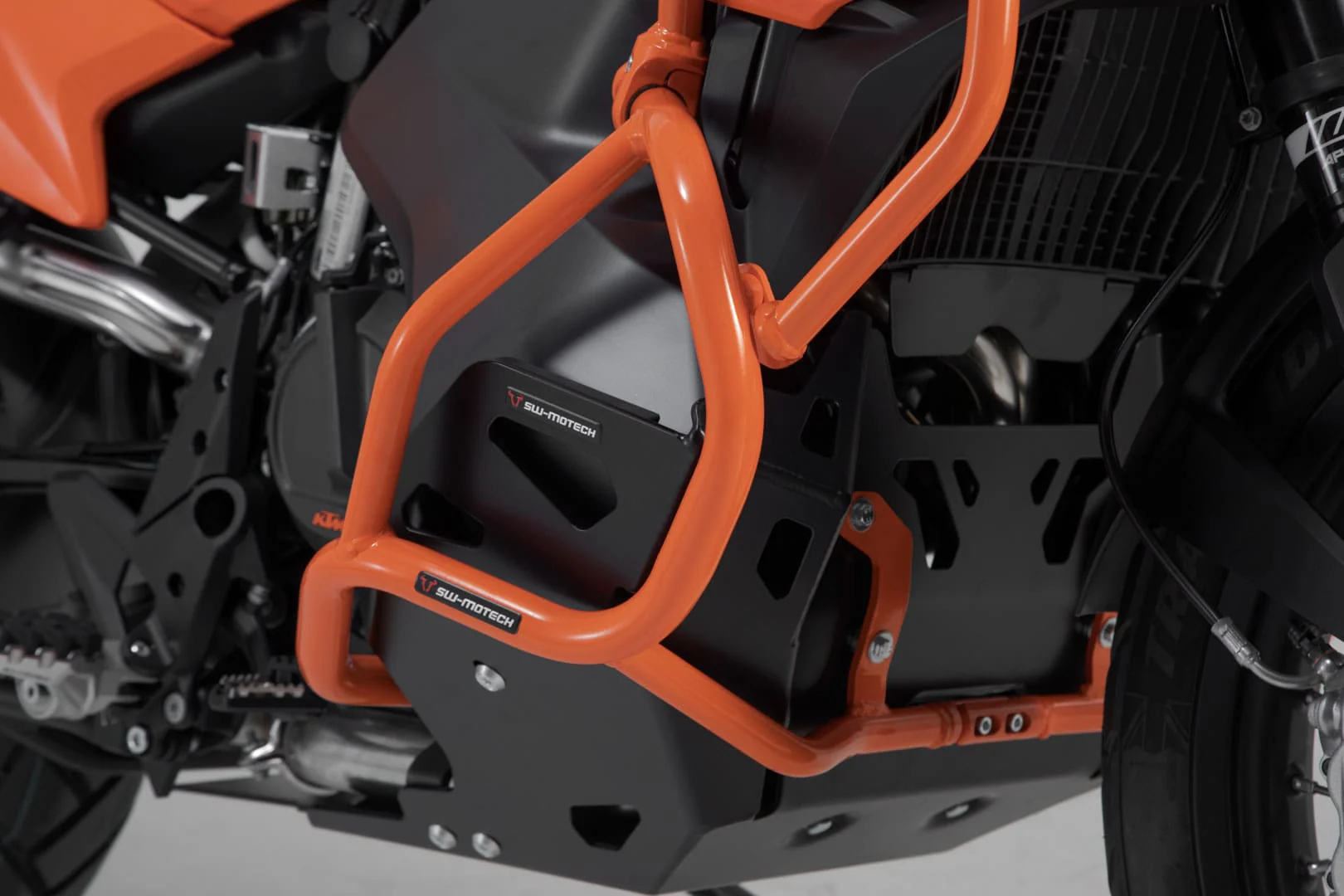

  • Engine Guard
    • Underbody protection against stone chips and collisions
    • Reliable and easy installation on original attachment points, modifications to the motorcycle are not required
    • Bike-specific development for perfect fit
    • Handguard Mounting Kit
    • Includes sturdy backbone made of powder-coated aluminum
    • Steel vibration reducing handlebar end caps
    • Easy mounting on the handlebars due to construction designed for the specific bike
    • Protection for levers and hands
    • Notes
      • Compatible with ADVENTURE and SPORT hand protector shells
      • Not compatible with KOBRA or BBSTORM hand protector shells.
  • Adventure Handguard Shell Set
    • Closed shape with side coverage
    • Impact-resistant plastic protects against wind, weather and branches
    • Striking design with a matt black surface
    • Additional protection with the separately available Crash Pad Set
    • More weather protection thanks to the separately available Extension Set
    • Notes
      • Not compatible with KOBRA or BB STORM mounting kits.

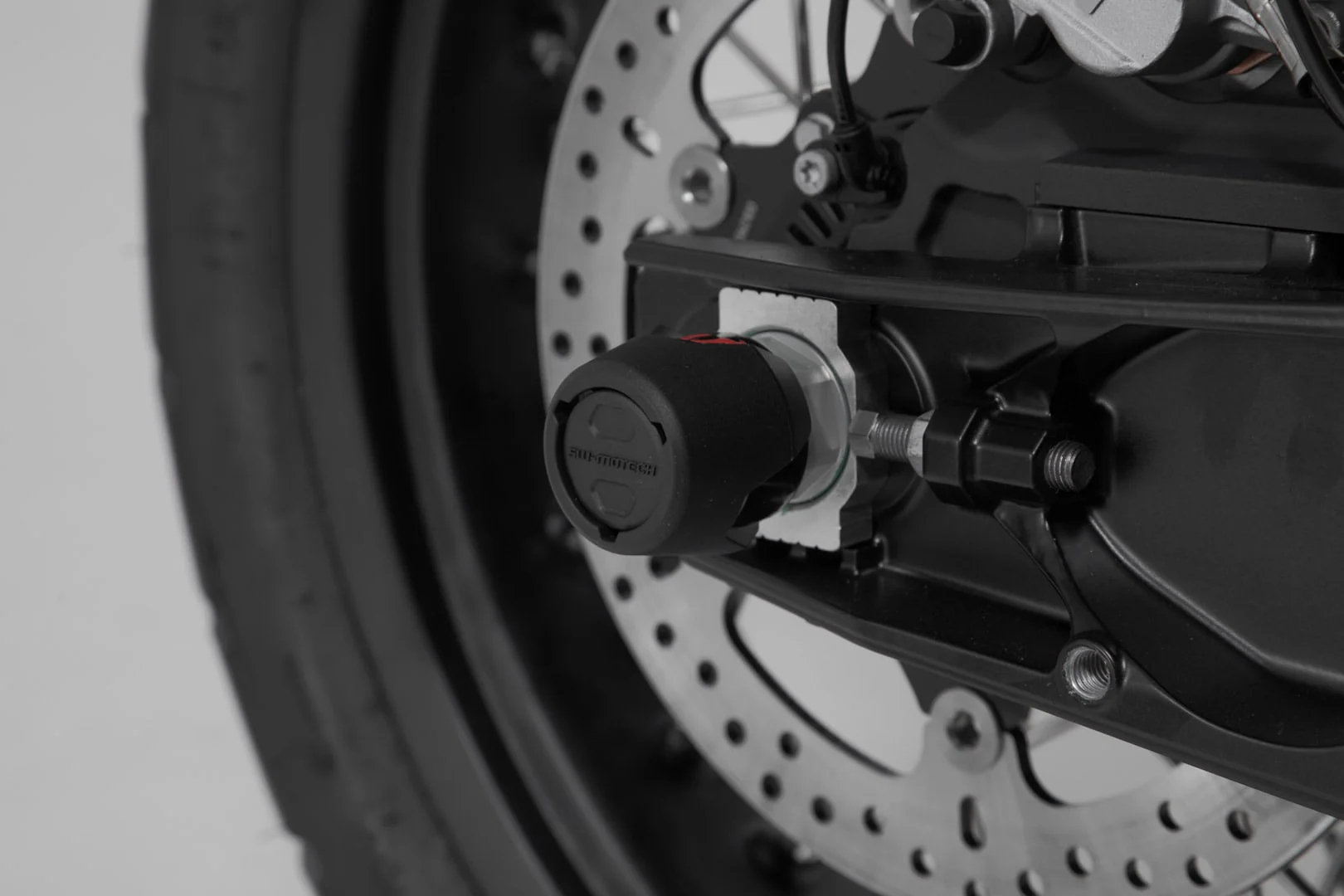

  • Slider Set for Rear Axle
    • Swing arm protection
    • Discreet slider pad made from abrasion-resistant polyamide
    • Robust core made of fiberglass-reinforced plastic (PA6 GF30)
    • High mechanical damping capacity due to TPU coating
    • Good sliding properties and emergency operating features
    • Matte black surface with polished bull logo in red
    • Easy mounting with axle thread and bike-specific spacers

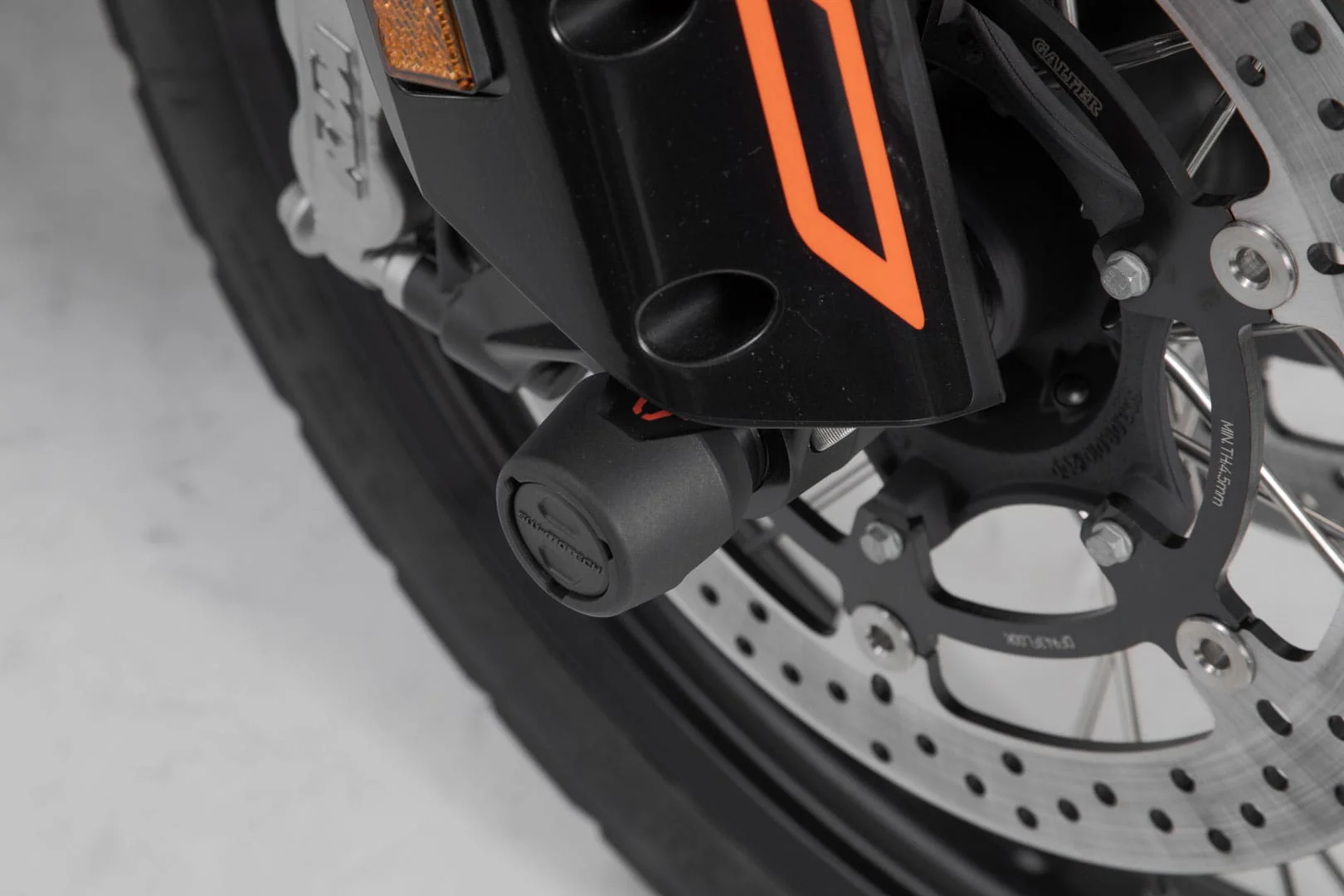

  • Slider Set for Front Axle
    • Protection for the fork
    • Discreet slider pad made from abrasion-resistant polyamide
    • Robust core made of fiberglass-reinforced plastic (PA6 GF30)
    • High mechanical damping capacity due to TPU coating
    • Good sliding properties and emergency operating features
    • Matte black surface with polished bull logo in red
    • Easy mounting with axle thread and bike-specific spacers
    • Notes
      • Includes mounting hardware and instructions.

Fits:

2021-2022	KTM	890 Adventure R
2021-2022	KTM	890 Adventure
2021	KTM	790 Adventure R
2019-2021	KTM	790 Adventure
2019-2020	KTM	790 Adventure R
